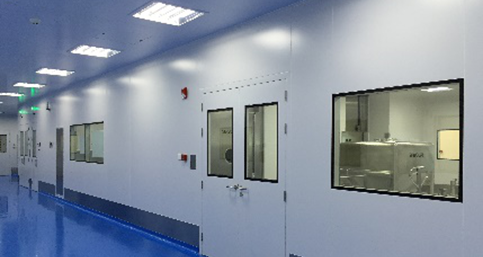

Pharmaceutical and Biotechnological wall partitions used for:
Pharmaceutical and biotechnological development need a very low bacteria and dust particle count environment as well as tightly controlled humidity level, air pressure, temperature etc. for its production facilities. Their cleanroom shall have smooth surface for easy cleaning and air tightness enclosure environment.
Therefore, the cleanrooms must be air tight and constructed in such a way that all surface are easy to access for decontamination .
Channel Systems Glazing panels are consists of double glazed flush with the partition wall systems. Internal aluminum extrusion concealed with desiccant dryer to reduce the possibilities of condensation.

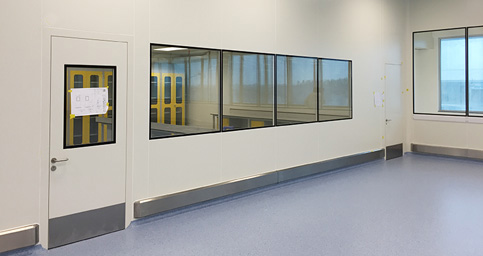

Channel Systems Pharmaceutical Cleanroom doors are designed to be fully compatible with the wall systems and door frames/leafs are designed to produce a flush detail. The framework and leafs are finished in an epoxy powder coating selected from a standard color range.
Products Characteristic:
• Designed in accordance with GMP standard of Pharmaceutical and Biotechnology cleanroom.
• Designed to be fully compatible with the wall systems and door frames/leafs are designed to produce a flush detail.
• Higher quality of raw material selected with professional manufacturing design process, increase the products usage life time .
Channel Systems ceiling grid systems is designed as a walk-on suspended ceiling systems. Complete ceiling assembly systems with related components and accessories required which compatibility of filters, lights, sprinklers and any other parts which may installed on or pass through the ceiling grid for Pharmaceutical and Biotechnology cleanroom.
Varies ceiling panel infill material selectable such like aluminum honeycomb, rockwool, polyurethane and etc. Panel surface skin can use color coated aluminum skin, color coated GI steel skin, stainless steel and etc. surface coating can be treat with PVC lamination, PE coating, epoxy coating or PVDF coating.
Products Characteristic:
• The ceiling panel surfaces are completely smooth from clean room.
• Easy to clean, hygienically clean and may be kept durably bactericidal and fungicidal.
• Aluminum coving installed in between ceiling panel and wall panel to create the smooth surface
• High performance air tightness
• Compatibility of filters, lights, sprinklers and any other parts which may installed on or pass through the ceiling grid.
Channel Systems panel are specifically manufactured to suit individual applications and supplied in modular format, pre-fabricated and pre-finished. We offers a wide range of light weight, strong and stiff honeycomb panels for cleanroom walls. Standard wall panel thicknesses are 6mm, 12mm, 44mm and 50mm.
Using our advanced manufacturing technology, there are no detectable outgassing from any of our panel components. All panels are coated with a PE roll coated finish with an option for non-conductive or static dissipative finishing material.

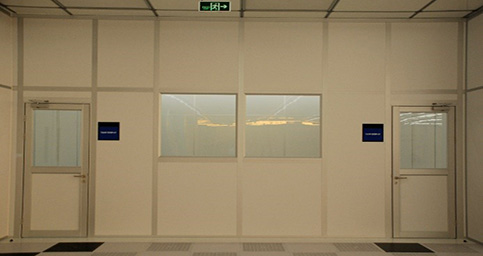

Channel Systems door are designed rigid, solid and can be dismantle and reinstall the window glass and door bottom panel without interference door leaf frame. Door design structures are able to withstand wind pressure from cleanroom and it's built with strong debility for frequent opening and closing for material or human flow in clean rooms.

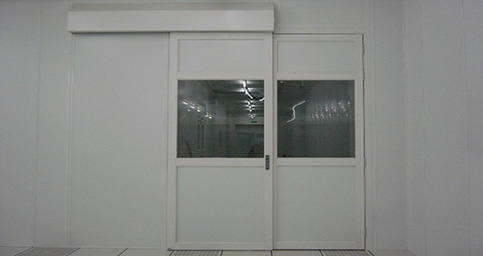

Channel Systems aluminum door available in single swing door, double swing door, transom door with top swing panel, folding door, automatic single sliding door, automatic double sliding door, hybrid door with one side sliding door and one side swing door and etc.

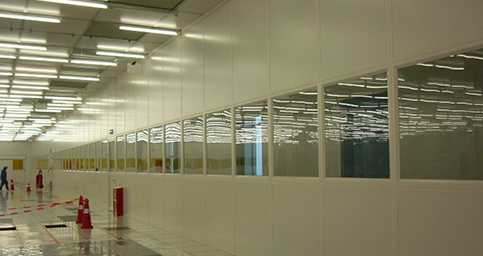

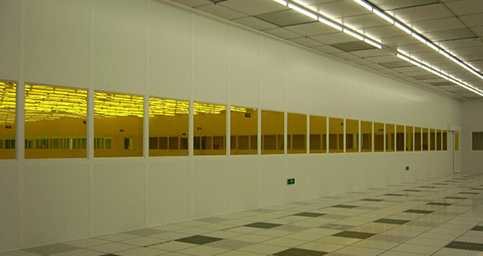

Channel Systems Window is design to compatible with the wall systems. Available in single glazing window, double glazing window for air return wall, full height window and continuous window. Glazing can be choose from electro static dissipative acrylic panel, electro static dissipative polycarbonate panel or tempers glass.
Door/Window Products Characteristic:
• Rigid and solid aluminum frame.
• Imported yellow or clear acrylic/ Polycarbonate/ Polyvinyl chloride glazing
• Air tight and dust proof design
• Easy demountable to allow for fast retrofit and relocation. Quick and easy framing for ease and speed of installation
• Reliable, high quality and cost-effective hardware fittings and automatic door mechanism which provided long life usage to end users.
Channel Systems Tech Grid ceiling has been developed to suit various type of ceiling demand. Extruded aluminum is especially well suited to cleanroom environments due to the inherent properties of aluminum which provide maximum resistance against corrosion and add structural integrity with crisp aesthetics.
Ceiling Grid Products Characteristic:
• Light and strong aluminum ceiling grid systems
• Independently support for gasketed HEPA and ULPA filters
• Simple and flexible installation
• Provide tight seal and perfect alignment
• Incorporate with sprinkle drop connection.
• Incorporate with plenum cap system, lighting and others ceiling components.
• Available in powder coated and anodized finish.
• Competitive pricing with various type of ceiling systems.
